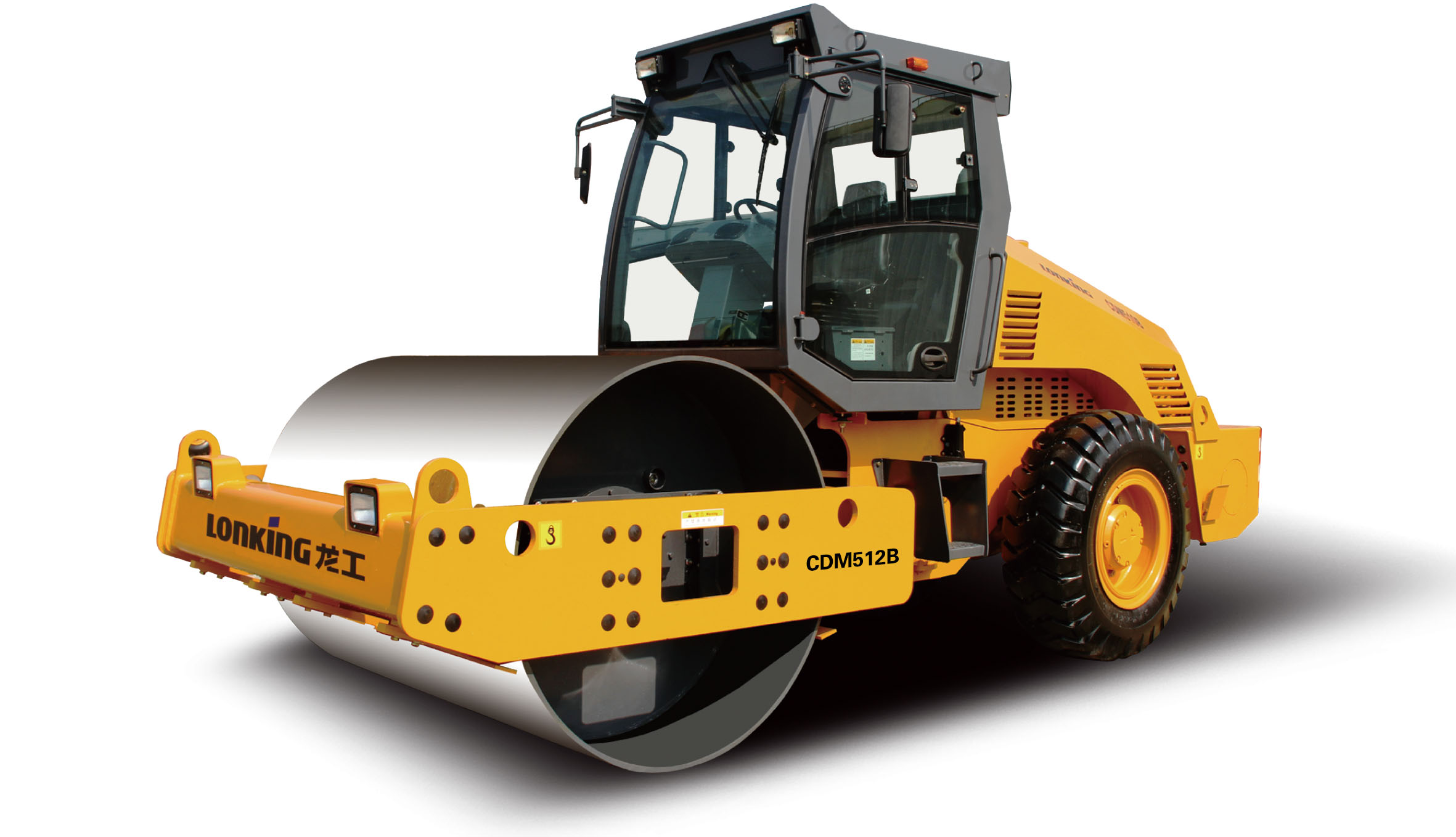

CDM512B

Construction Machinery CDM512B features:

B SERIES SINGLE DRUM VIBRATORY ROLLERS
Front& Rear Light for Night Operation
Panoramic Cabin / Ajustable Panel                                                                                                                              Open-loop Hydraulic Vibration System
Permco Hydraulic Components
Wear And Impress Resistant
AC & Pad Foot Optional

Weight LoadModelCDM512B
Operating Weight (kg)12000
Distributed Weight for Drum(kg)6000
Distributed Weight for RearWheel(kg)6000
Compact  PerformanceStatic Linear Load for Drum(N/cm)277
Frequency(HZ)28
Nominal Amplitude(mm)1.8/0.9
Centrifugal Force(kN)280/180
Maneuverability PerfomanceDiameter of Drum(mm)1520
Width of Drum(mm)  (W2)2120
Rim Thickness of Drum(mm)25
Length﹡Width﹡Height(mm)(L﹡W1﹡H)5975*2260*3250
Min .Ground Clearance(mm) (h)420
Min .Steering Radius(mm)6500
Wheelbase(mm)  (L1)3135
Travel Speed(km/h)Forward1.9/3.3/9.1
Reverse1.9/3.3
Gradeability30%
Steering Angle30±1°
Swing Angle±10°
Tyre Specification17.5-25 12PR
EngineManufacturerYuchai
ModelYC6B120-T20
Rated Power(kW/rpm)85/2200
Min Fuel Consumption(g/kW•h)235
CapacityStorage Battery (V/Ah)12V﹡120Ah﹡2
Fuel Tank(L)220
Hydraulic Tank(L) 220
OthersDrive TypeMechanical
Vibration SystemOpen-loop Hydraulic Vibration System
Service BrakeAir Booster Caliper Rear Axle Brake
Parking BrakeShaft Controlling Brake of Gear Box
